Pulse-Bac 3690 Drum Package
  • SKU: CD103480-PKG

Pulse-Bac 3690 Drum Package



What is HPLM? Put simply, it’s the highest power to weight ratio you will find in a vacuum today. With the highest CFM of all the series, they weigh in at just 208lbs. HPLM vacuums supply all the power you need in a portable package that saves time and trouble. Designed to capture dust generated by surface preparation equipment, large power tools and for job site large-scale cleanup operations, the HPLM vacuums are ideal for work involving dust from concrete, sand, drywall, wood and many other non-combustible materials. A great fit for surface preparation and manufacturing, all HPLM Series is compliant with OSHA’s Silica Dust Rule.

  • Airflow: 450-690 CFM
  • Weight: 208lbs.
  • Filtration: HEPA 99.97% @ .3 Microns
  • Inlet: 3″
  • Collection: Longopac Bagger or 55 Gal. Drum

Features & Benefits

HPLM Power Options

Like the 1000 Series HPLM vacuums are essentially identical on the outside and are available in different power and collection options. This combination of power and versatility makes HPLM well suited for a variety of applications.

2450 Motor Illustration


The 2450 features a twin motor power plant that provides an impressive 450 CFM & 110″ of lift. This unit offers excellent performance for mid-sized walk behind grinders, scarifiers and other large surface preparation equipment. The 2450 is also at home in a manufacturing environment where it can serve as a dedicated dust collector for stationary machinery.

3690 Motor Illustration


The 3690 is a step up from its little brother and features a tri-motor power plant that provides a whopping 690 CFM & 110″ of lift. This unit offers the highest level of performance and is a great fit for large walk behind grinders & polishers and other large surface preparation equipment. Like the 2450 the 3690 is great in a manufacturing environment where it can provide dust collection for a variety of applications.

the mechanics of pulse-bac illustration/animation

Self-Cleaning Technology

Everyone has dealt with the trouble that a clogged vacuum filter creates, it takes up valuable time and creates a mess. Pulse-Bac solves this problem with our patented Automatic Pulse-Clean Technology™ that automatically cleans the filter while you work. Others may claim to have “automatic” or “pulse” filter cleaning, but look closely and you’ll see that they fall short of the original, requiring extra equipment like air compressors or manual gadgets that require work to stop for filter cleaning. These don’t truly solve the problem and make for more work. Only vacuums with the Pulse-Bac® name use our unique technology to automatically clean the filter while you work.

playHow it Works

More Power. Less Weight.

HPLM vacuums provide a huge amount of power on a lightweight frame. Designed to be used with large concrete grinders and other surface preparation equipment or as a dedicated dust collector for manufacturing machinery,  they provide a platform that is up to 70% lighter than vacuums with similar power levels.

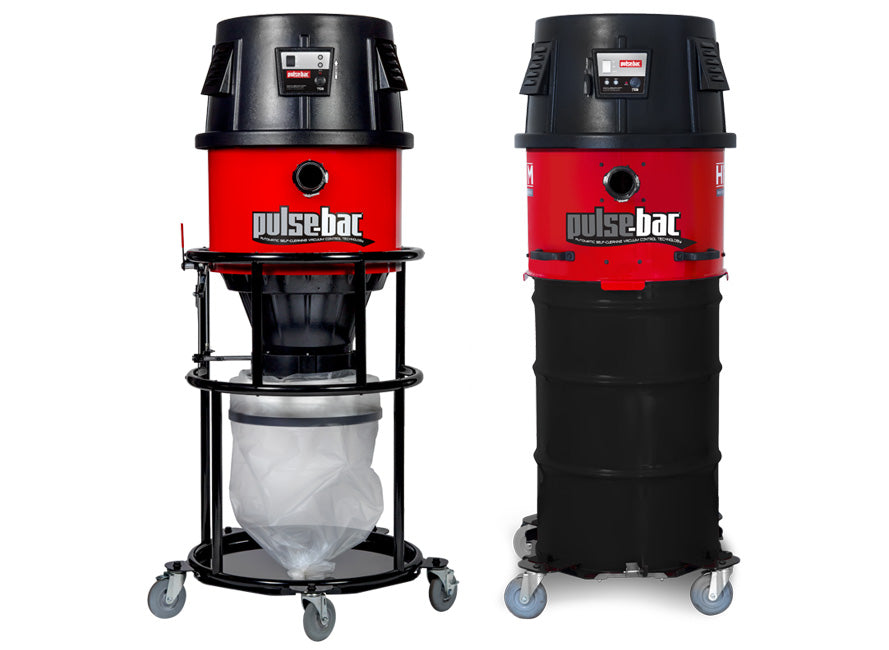

HPLM Collection Option

We’ve given the HPLM two versatile collection options. This way you can find the collection option that suits the way you work. Choose between a Longopac bagger or 55 Gallon drum.

hplm bagger collection options

Longopac Bagger

Similar to the Revolution 360 Bagger found on our 1000 Series the HPLM Bagger option is strong, durable and maneuverable. Made of 12 gauge U.S. Steel and powder coated to prevent rust, this unique bagger design allows the user to grab and go from any direction and will fit through a standard 36″ doorway. Bagger units feature the Longopac Endless Bagging system and are equipped with our patented Easy Empty Valve System that allows the user to dump dust and debris without turning the vacuum off.

hplm drum vacuum collection options

55 Gallon Drum Vac

The HPLM “D” models offer all the performance of their bagger counterparts, but give you the large collection volume of a 55 gallon drum. The 3690D & 2450D can be used with any standard 55 gallon drum and when not sitting on the drum, the vacuum head will fit securely onto the four caster dolly for easy transport. Just remove the drum and place the vacuum head on the dolly and attach the special T-Handle. Now you can pull the unit on/off the job site with ease. No pre-separators or trailers to load up like other machines and only one man needed to do the job.

steel beam illustration

Durable Steel Construction

Pulse-Bac® units are made for the rugged conditions of a job-site. We don’t cut cost with molded plastic tanks, cheap electrical components and off-shore manufacturing. With tanks made of 16ga. cold-rolled U.S. steel and a steel assembly covered with by a high impact ABS plastic hood, Pulse-Bac® is made to keep working even in the most punishing conditions. Even details like wheels are heavy duty, non-marking polyurethane casters, instead of molded plastic wheels on thin spindles. Add the fact that every Pulse-Bac is assembled by hand in our facility in Tulsa, Oklahoma and you’ve got quality you can’t beat.

easy empty bagger

Easy Empty System

The Revolution 360 Bagger option features our patented Easy Empty Valve System. When the valve is opened to release the collected material into the bag, our specially designed vent ports allow air to continue to flow into the vacuum. This airflow stops dust from escaping and allows the vacuum to continue to run without the bag being sucked up into the canister. Once the debris has been dumped, you can tie off the Longopac® bag, remove it and start a new bag, without ever shutting off the vacuum.

remote start image

Remote Start

Everyone has wanted this feature when they’ve started their tool before the vacuum. The remote fob included with HPLM Series vacuums can start the vacuum with the push of a button from up to 180 feet away.

standing empty feature

Standing Empty

We’ve made our awesome Easy Empty System even better with the addition of the Standing Auto-Close feature. This allows the user to open the dump valve releasing the collected dust & debris from a comfortable standing position and then automatically closes the valve once the lever is released.

longpac bagger

Longopac Bagging

Popular with contractors in many fields, the Longopac endless bagging system provides a quick, dust-free bagging solution that has never worked better now that it is paired with Pulse-Bac’s patented Easy Empty Valve system.

cyclonic debris management

Cyclonic Debris Management

The Cyclonic Debris Management system comes standard on all vacuum tanks, extenders, and preseparators. Our CDM system works with our pulsing technology and prevents upwards of 90% of dust and debris from ever reaching the filter. The CDM system stops dust and debris from constantly cycling up to the filters and holds it at the bottom of the tank until discarded.


Model CFM Lift HEPA Collection Weight Current Voltage
2450 / 2450D 450 110" Single-Stage Longopac/55 Gal. Drum 205 lbs. 12A 220V
3690 / 3690D 690 110" Single-Stage Longopac/55 Gal. Drum 208 lbs. 17A 220V
